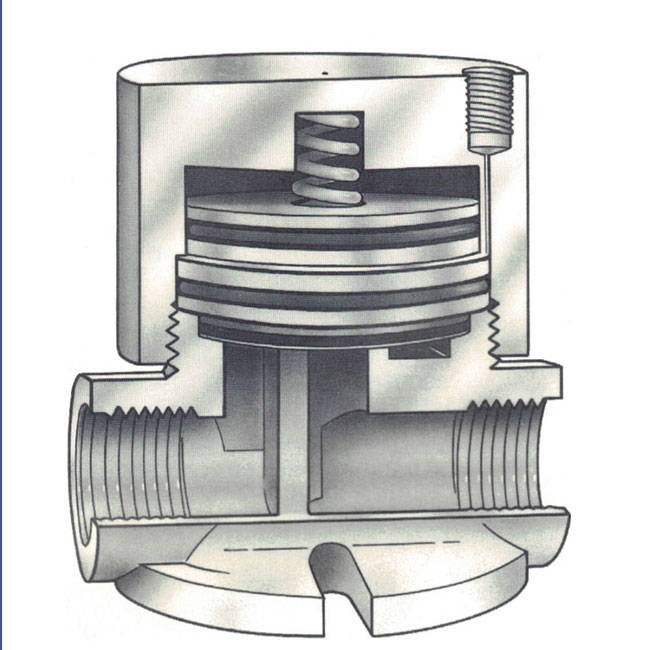

Direct acting full flow with top entry for easy maintenance and minimum water hammer. The standard valve is normally closed (apply air to open). Normally open valve is also available upon request.
Type 1
Normally Closed
Most popular style. Fail-safe closed. Air pressure to the 1/8” top port opens the valve. Removing pressure allows the spring to close it.
Type 2
Normally Open
Fail-safe open. Air pressure to the top port closes the valve. Removing pressure allows the spring to reopen it.
Test data was performed with 68°F water and 160 PSIG maximum pressure.
Performance curves may change with higher viscosity liquid and/or higher
temperature.
Customers should consult sales reps or the manufacturer for custom products or special applications.
Metrail
Temperature
OTHER
0°F-340°F
POLYPRO
0°F-180°F
PVC
0°F-140°F
PVDF
0°F-280°F
TEFLON
0°F-340°F
¼” to 1” Valve FNPT
All valves are fully ported
